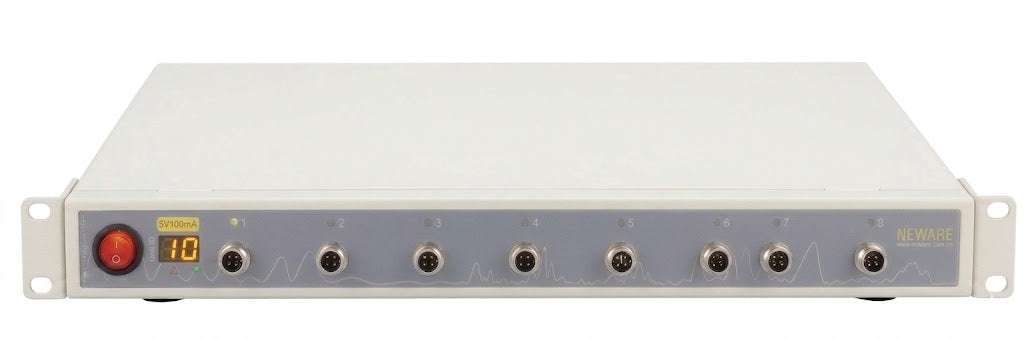

BTS4000 5V 100mA Battery Testing System Middleware Not Included

Voltage

CV output range

25mV~5V

Min discharge voltage

-5V

Accuracy

± 0.05% of  FS

Stability

± 0.1% FS

Current

Output range/channel

4 ranges: 0.1mA, 1mA, 10mA, 100mA

Accuracy

± 0.05% of  FS

CV cut-off current

0.2uA, 2uA, 20uA, 0.2mA

Stability

± 0.05% of  FS

Clamps

Alligator

Polymer

Coin

Dimensions （W*D*H） (mm)

1U(164)， 480*330*44
