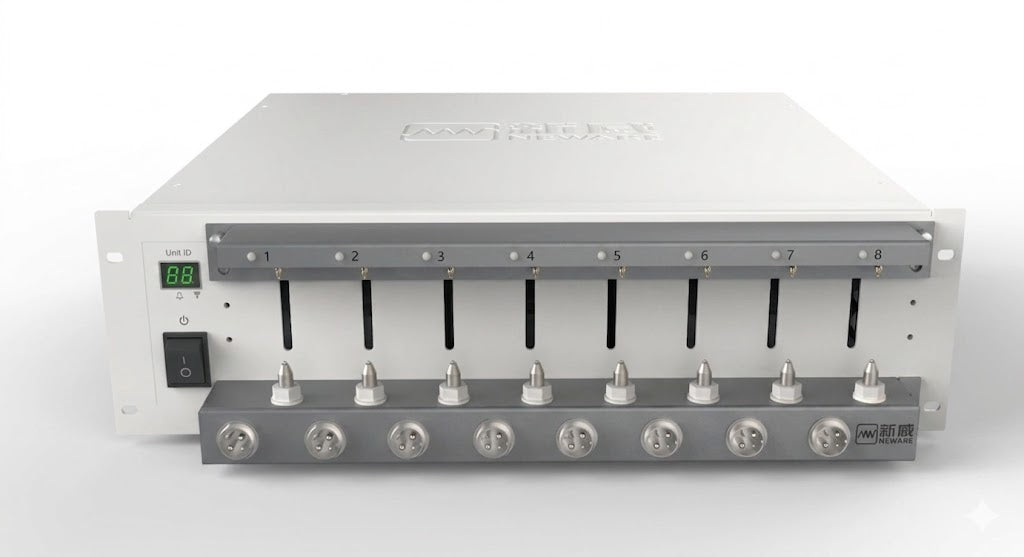

BTS4000 5V 12A Battery Testing System

$3,100.00 USD

Sale Sold out

Voltage	CV output range	25mV~5V
	Min discharge voltage	2.0V for universial holder,2.5V for 2m cable
	Accuracy	± 0.05% of FS
	Stability	± 0.05% of FS
Current	Output range/channel	Range1: 5mA-1A; Range2: 1A-6A; Range2 : 6A-12A
	Accuracy	± 0.05% of FS
	CV cut-off current	Range1 : 2mA ; Range2 : 12mA; Range3 : 24mA
	Stability	± 0.05% of FS
DCIR	Supported
Cycle	Max cycles	65535
	Max steps	254
	Cycle nest	3
Protection	Safety protection	● Power-off data protection
		● Off-line operation mode
		● User-defined protection conditions, such as upper and lower limited current/voltage, delay time, temperature, etc.
